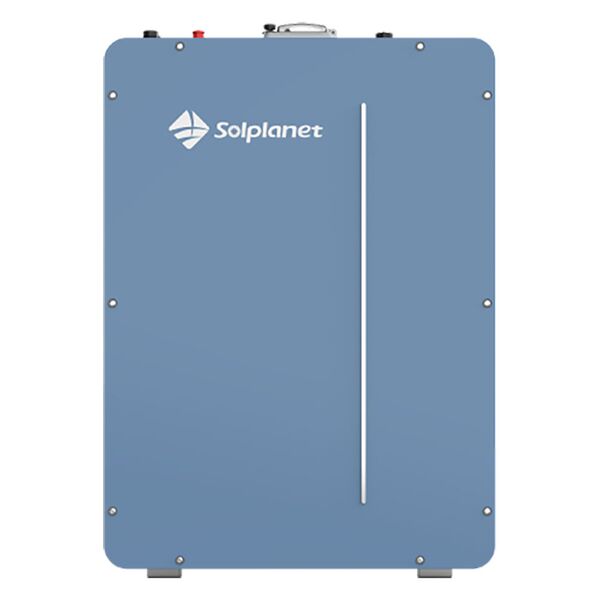

Description Solplanet Ai-LB 5K
Battery LiFePO4 Solplanet AI-LB 5K 5 kW: stability and reliability of energy supply
Every year, people are looking for independence from traditional electricity. Solar systems are becoming more and more popular. Solplanet AI-LB 5K LiFePO4 battery is an important element of this system. It accumulates and then releases energy. This allows to reduce the dependence on the network.
The battery supports up to 5 kW load. This is enough for most household needs. LiFePO4 technology provides a long-term resource. Which is 6000 cycles . When connected to Solplanet inverters, it increases the efficiency of the system.
How the battery solves problems
The problem of the modern power grid is frequent outages. The Solplanet AI-LB 5K battery solves this problem. It stores excess solar energy during the day. It is activated in the evening or during a power outage. The battery automatically provides power to the house.
In combination with the Solplanet inverter, a complete hybrid system is created. It allows you to use energy from the network and battery. This significantly saves on bills. When disconnected, the relay instantly switches power to the battery. This happens in less than 10 milliseconds. The devices will work without interruption.
Features and benefits
The Solplanet AI-LB 5K battery works perfectly with Solplanet inverters. The system automatically adjusts the charging power. This extends battery life. It also saves electricity.
The battery has overload protection. This makes it very reliable. The battery can be monitored through a mobile application. You will see the charge level, battery status and consumption forecast.
Why choose Solplanet AI-LB 5K
This battery is a reliable means of storing energy. Using it with Solplanet inverters, you get a comprehensive solution. It is economical, durable and reliable. The battery will help you reduce your dependence on the network and guarantee stable power. This solution is best suited for apartments. Depending on the load, a 6 kW inverter with this battery is capable of providing energy for a three-room apartment during the day. With an average load - light, television, Internet, computer, microwave, or electric kettle will work for about 15 hours. Depending on the charge current, the battery is charged to full capacity in 5 - 2 hours.
Characteristics Solplanet Ai-LB 5K
Battery module
LB51100 A
Battery voltage range
44.8V - 57.6V
Capacity
100 Ag
Certification
TUV/IEC 62619/IEC 62040/IEC 61000/UN38.3
Cooling concept
Natural convection
Degree of protection
IP65
Depth
150 mm.
Life cycle
6000 charge/discharge
Mass of the module
44.5 kg.
Max. charge / discharge current
50A
Max. charging / discharging power
2.56 kW
Max. working height
3000 m.
Nominal battery voltage
51.2B.
Nominal charging/discharging capacity
2.56 kW
Nominal energy
5.12 kW/h
Operating temperature range
Charging: 0°C ~ 55°C Discharging: -20°C ~ 55°C
Place of installation
indoors / outdoors
Reception/return efficiency
≥95%
Relative humidity
5%~95%, non-condensing
Scalability
Max. 8 sets in parallel
Storage temperature range
-20°C ~ 55°C
The method of fastening
Floor stand
Type
LiFePO4
Useful energy
4.61 kWh
Vtsota
680 mm.
Weight
57 kg.
Width
490 mm.
General characteristics
Manufacturer
Solplanet
