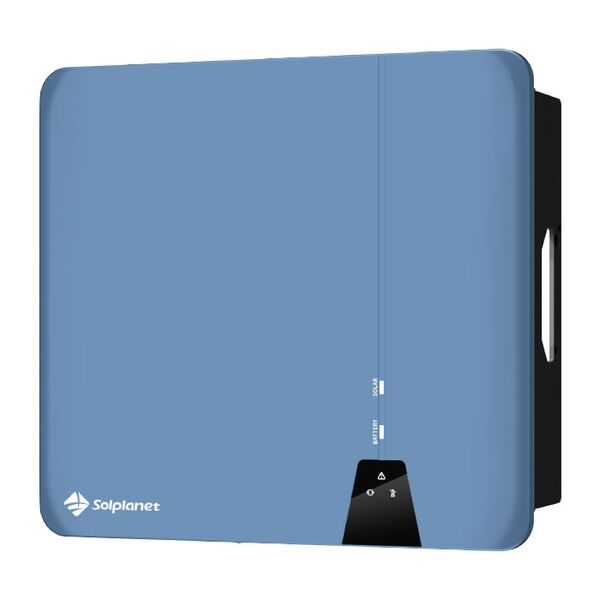

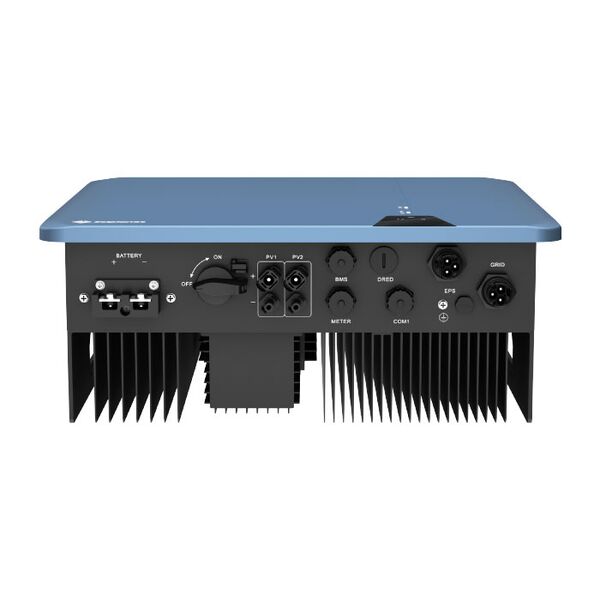

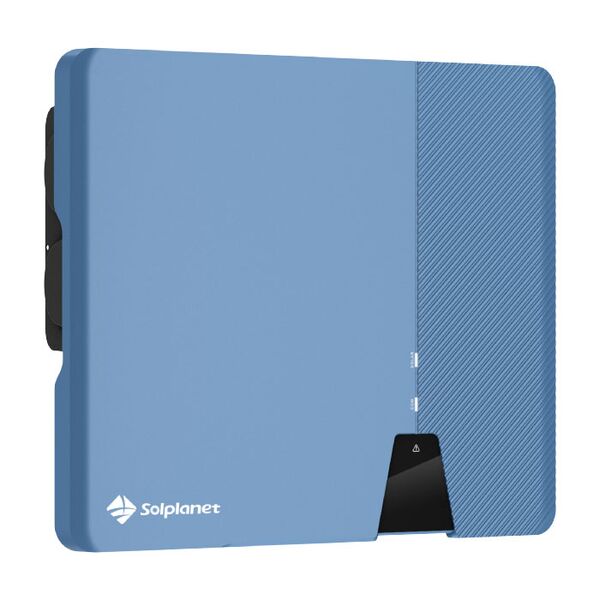

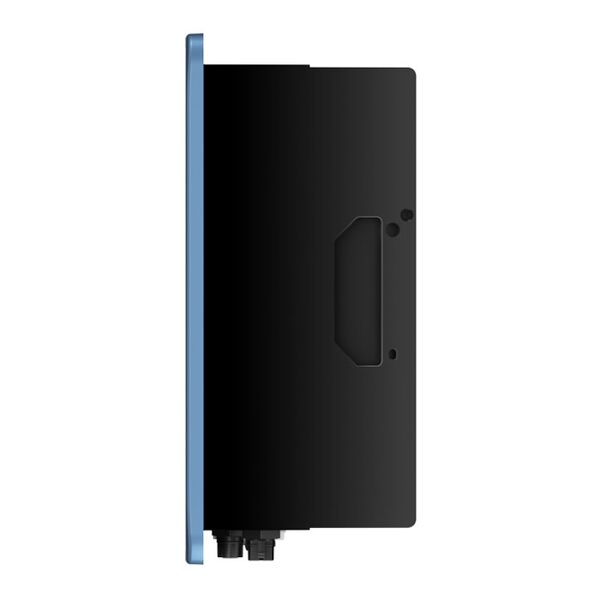

Solplanet ASW10000S-S - Hybrid inverter, single-phase 10 kW
Please sign in so that we can notify you about a reply
Description Solplanet SW10000S-S
Hybrid solar inverter Solplanet ASW10000S-S is a reliable solution for autonomous power supply. It belongs to the class of powerful inverters and is suitable for the construction of solar power plants . Its maximum power is 10 kW. Suitable for working with photovoltaic cells. Converts direct current into alternating current. Provides stable power supply without voltage drops.
The inverter is equipped with a modern monitoring system. Data can be viewed via a mobile application. Communication via Wi-Fi and RS485 is supported. Intelligent control adapts to changing loads. Automatic adaptation improves energy efficiency.
The device operates in a wide voltage range. Input voltage – from 180 to 259 V. High conversion efficiency up to 98%. Reliable protection system against overloads and overheating. Support for work with rechargeable batteries is provided.
The design is designed for a long service life. The housing is made of high-quality materials. The IP66 protection class provides resistance to dust and moisture. The inverter is suitable for outdoor installation.
Solplanet ASW10000S-S supports parallel connection. This allows you to increase the system power. Emergency power mode is provided. In the event of a power outage, the device continues to operate. Continuous energy supply is ensured.
Intuitive interface simplifies setup. LED status indication is provided. Built-in screen displays basic operating parameters. Connection is made via standard connectors.
The inverter meets international safety standards. Certified for use in private and commercial systems. Ensures optimal performance of solar stations. Reduces dependence on traditional energy sources.
Solplanet ASW10000S-S is the choice for those who value quality. It will help create an efficient solar system. It will ensure energy independence and reduce electricity costs.
Characteristics Solplanet SW10000S-S
AC connection
Plug-in connector
All-pole sensitive residual current monitoring unit
✓
Certificates and approvals (more available upon request)
CE, EN50549, IEC62109, IEC62116, IEC61727, IEC61683, IEC60068, IEC61000, AS/NZS4777, C10/C11
Climatic category (according to IEC 60721-3-4)
4K4H
Communication with BMS
✓
DC connection
Plug-in connector
Guarantee
10 years
Idle power
< 1W.
Installation type
Wall bracket
Maximum efficiency / European efficiency
97.7% / 97.3%
Noise level (typical)
0 dBA
Type
Hybrid
Connection
Communication interface
RS485/Wi-Fi
General characteristics
Country of origin
People's Republic of China
Number of phases
1
Power
10 kW
Topology
Bare
Manufacturer
Solplanet
Physical properties
Depth
97 mm.
Height
218 mm.
Weight
3.9 kg.
Width
288 mm.
Technical capabilities
Cooling concept
Natural convection
DC switch
✓
Ground fault monitoring / network monitoring
✓
LED indicators (status/fault/communication)
✓
Management
Mobile app
Night monitoring
✓
Possibility of integration with third-party automation systems
✓
Surge protection
Type II
Terms of use
Maximum permissible relative humidity (non-condensing)
100%
Maximum working height
3000 m.
Operating temperature range
-25°C…+60°C
Вихідні параметри по змінному струму
AC mains frequency/range
50Hz/45Hz. up to 55 Hz. | 60 Hz./55 Hz. up to 65 Hz.
Adjustable power factor range
0.8 leads 0.8 lags
Allowed AC voltage range
from 180V. to 295V.
Harmonic distortion (THD) at rated power
< 3%
Maximum output current
50A.
Maximum peak power
10000VA.
Rated AC voltage
220V/230V/240V.
Rated full power
10000VA.
Rated output current
50A.
Вхідні параметри по постійному струму
Maximum input voltage
600V.
Maximum operating input current
16A.
Maximum short-circuit current
22.5A.
Minimum input voltage
80V.
MPP voltage range
80V. to 560V. / 360V.
MPP voltage range at full load
80V. to 560V. / 360V.
Number of independent MPPT inputs/strings per MPPT input
3/1
Starting voltage
100V.
Захист
DC reverse polarity protection/short circuit protection
✓
Degree of protection (according to IEC 60529)
IP66
Protection against jumps
✓
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 6
I/AC: III; DC: II
