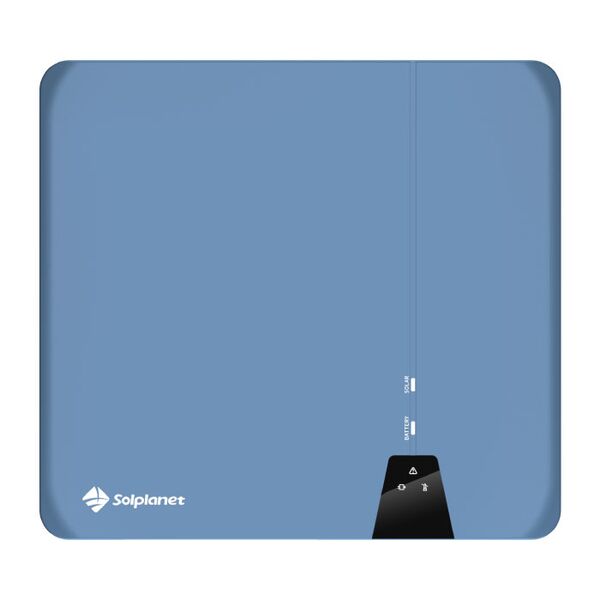

Solplanet ASW6000H-S2 - single-phase, hybrid inverter 6 kW
Please sign in so that we can notify you about a reply
Description Solplanet ASW6000H-S2
Solplanet ASW6000H-S2 - single-phase, hybrid inverter with a capacity of 6 kW. Probably the most common model for use in an apartment. Inverters of this capacity are rightfully considered the most popular among owners of 1-3 room apartments. After all, this power is enough to provide power for the energy consumers needed in the apartment for a long period.
Due to the efficient distribution of energy, the inverter is able to support round-the-clock power supply of the apartment. The ASW6000H-S2 is compatible with both batteries and solar panels. And if there is a power grid, it can charge batteries from it. What makes this inverter universal in the construction of a home SES . ASW6000H-S2 does not support operation with electric generators. What makes it impossible to use an inverter in the scheme: network/solar panels/generator. Therefore, its use in the private sector may be impractical.
There are no controls on the inverter housing, as the ASW6000H-S2 is controlled by a mobile application There is also a method of integration with a smart home based on Home Assitant . That allows you to control the inverter centrally - from the control panel of the automation system.
Solplanet ASW6000H-S2 has quite compact dimensions and low noise level. That allows him to find his place in the apartment. Among the pleasant bonuses, it is worth mentioning the affordable price. Compared to similar solutions, it is cheaper. And the warranty period presented by the manufacturer is 10 years. The inverter has a convenient and clear control. And extensive customization options allow you to use the ASW6000H-S2 in various scenarios.
Order the Solplanet ASW6000H-S2 inverter now and get a nice bonus!
Characteristics Solplanet ASW6000H-S2
AC connection
Plug-in connector
All-pole sensitive residual current monitoring unit
✓
Battery type
LiFePO4
Battery voltage range
from 40V. up to 60V.
Certificates and approvals (more available on request)
CE, IEC62109, IEC61000, EN50549, AS/NZS 4777, C10/C11, IEC61727, IEC62116, IEC61683
Climatic category (according to IEC 60721-3-4)
4K4H
Communication with BMS
✓
Compatible battery
Aiswei Ai-LB3 series
Direct current connection
Plug-in connector
Guarantee
10 years
Idling power
< 10Вт.
Installation type
Wall bracket
Max. battery for load efficiency
94.7%
Max. charging / discharging power
5000 W / 5000 W
Max. charging current / Max. discharge current
100A / 100A
Max. input current from the network
27.3A
Max. switching time
≤ 10 ms
Maximum efficiency / European efficiency
97% / 97.6%
Maximum total output power
7500 VA, 10s
MPPT efficiency
99.9%
Noise level (typical)
30dBA
Nominal battery voltage
48B.
Nominal current (at 230 V) / Max. output current
21.7A
Nominal full power / Max. input full power from the grid
6000 VA
Nominal input current from the network
26.1A
Nominal network voltage
230V alternating current
Power factor at nominal power / adjustable volume
9000 Wp STC
Connection
Communication interface
RS485/Wi-Fi/LAN/DRM
General characteristics
Number of phases
1
Power
6 kW
Producing country
China
Topology
Bare
Manufacturer
Solplanet
Physical properties
Depth
193.5 мм.
Height
455 мм.
Weight
25.1 кг.
Width
483 мм.
Technical capabilities
Cooling concept
Natural convection
DC switch
✓
Earth fault monitoring / network monitoring
✓
LED indicators (status / fault / communication)
✓
Management
Mobile application
Night monitoring
✓
Overvoltage protection
III type
Possibility of integration with third-party automation systems
✓
Terms of use
Maximum permissible value of relative humidity (without condensation)
100%
Maximum working height
3000 m.
Operating temperature range
-25°C...+60°C
Вихідні параметри по змінному струму
AC mains frequency/range
50 Гц±5 Гц / 60 Гц±5 Гц
Adjustable power factor range
≥0,99 / 0,8, що призводить до відставання на 0,8
Allowed range of alternating voltage
від 180В. до 290В.
Harmonic distortion (THD) at rated power
< 3%
Maximum output current
27.3A.
Maximum peak power
6000 VА.
Nominal AC voltage
180В. до 280В. / 230В.
Rated full power
6000 VА.
Rated output current
26.1A.
Вхідні параметри по постійному струму
Maximum input voltage
550В.
Maximum operating input current
16A.
Maximum short-circuit current
20A.
Minimum input voltage
40В.
MPP voltage range
40В. до 530В. / 380В.
MPP voltage range at full load
65 - 400V.
Number of independent MPPT inputs / lines per MPPT input
2/1
Starting voltage
50В.
Захист
DC reverse polarity protection / short circuit protection
✓
Degree of protection (according to IEC 60529)
IP65
Protection against jumps
✓
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 6
I/AC: III; DC: II
