Description Solplanet ASW3000S-S

Purpose of the device

Solplanet ASW3000S-S is an inverter for stand-alone and hybrid systems. It converts direct current from solar panels into alternating current. Provides stable power supply for homes, offices, workshops. Compatible with most photovoltaic modules.

Technical specifications

Maximum power – 3000 W. Output voltage – 230 V. Frequency – 50/60 Hz. High efficiency up to 97.6%. Wide input voltage range. Supports fast switching to backup power.

Main advantages

Compact housing that is easily mounted on the wall. Built-in MPPT controller optimizes the operation of the panels. Quiet in operation, without fans. Reliable protection against short circuit and overheating. Energy-efficient technology with minimal losses.

Functionality

Automatic output voltage regulation. Remote monitoring via Wi-Fi or mobile app. Built-in display for parameter control. Compatible with battery systems for energy conservation.

Scope of application

Suitable for private houses, summer cottages, commercial facilities. Used in network and backup electrical systems. Provides uninterrupted power supply to important devices.

Safety and reliability

Protection against overvoltage and overloads. Stable operation under various conditions. Durable housing made of high-quality materials. Meets international safety standards.

Conclusion

Solplanet ASW3000S-S is an efficient and reliable inverter. It optimizes the operation of solar panels. Guarantees stable power supply in any conditions.

Characteristics Solplanet ASW3000S-S

AC connection

Plug-in connector

All-pole sensitive residual current monitoring unit

✓

Certificates and approvals (more available upon request)

CE, IEC62109, IEC61000, EN50549, AS/NZS 4777, C10/C11, IEC61727, IEC62116, IEC61683

Climatic category (according to IEC 60721-3-4)

4K4H

Communication with BMS

✓

DC connection

Plug-in connector

Guarantee

10 years

Idle power

< 1W.

Installation type

Wall bracket

Maximum efficiency / European efficiency

97.6% / 97.1%

Noise level (typical)

0 dBA

Type

Hybrid

Connection

Communication interface

RS485/Wi-Fi

General characteristics

Country of origin

People's Republic of China

Number of phases

1

Power

3 kW

Topology

Bare

Manufacturer

Solplanet

Physical properties

Depth

94 mm.

Height

264 mm.

Weight

6.5 kg.

Width

320 mm.

Technical capabilities

Cooling concept

Natural convection

DC switch

✓

Ground fault monitoring / network monitoring

✓

LED indicators (status/fault/communication)

✓

Management

Mobile app

Night monitoring

✓

Possibility of integration with third-party automation systems

✓

Surge protection

Type III

Terms of use

Maximum permissible relative humidity (non-condensing)

100%

Maximum working height

3000 m.

Operating temperature range

-25°C…+60°C

Вихідні параметри по змінному струму

AC mains frequency/range

50Hz/45Hz. up to 55 Hz. | 60 Hz./55 Hz. up to 65 Hz.

Adjustable power factor range

0.8 leads 0.8 lags

Allowed AC voltage range

from 180V. to 290V.

Harmonic distortion (THD) at rated power

< 3%

Maximum output current

13.6A.

Maximum peak power

2000VA.

Rated AC voltage

220V/230V/240V.

Rated full power

2000VA.

Rated output current

13.6A.

Вхідні параметри по постійному струму

Maximum input voltage

580V.

Maximum operating input current

12A.

Maximum short-circuit current

18A.

Minimum input voltage

80V.

MPP voltage range

80V. to 550V. / 360V.

MPP voltage range at full load

65 - 400V.

Number of independent MPPT inputs/strings per MPPT input

1/1

Starting voltage

100V.

Захист

DC reverse polarity protection/short circuit protection

✓

Degree of protection (according to IEC 60529)

IP65

Protection against jumps

✓

Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 6

I/AC: III; DC: II

Find similar

Теги

Reviews about Solplanet ASW3000S-S from real users

No reviews found

Список

Карта

ComfortLife.Market

Out of stock

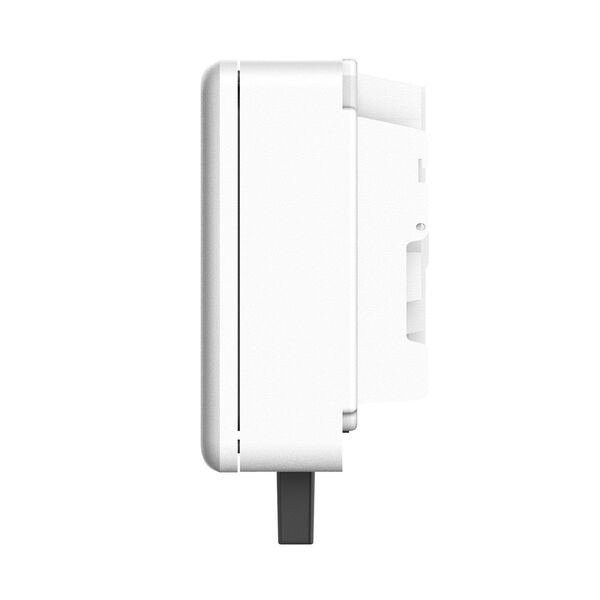

Solplanet ASW3000S-S - single-phase hybrid inverter 3 kW
