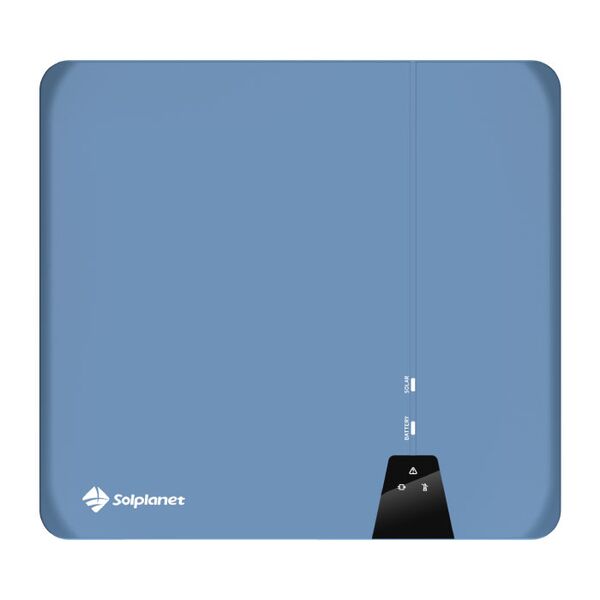

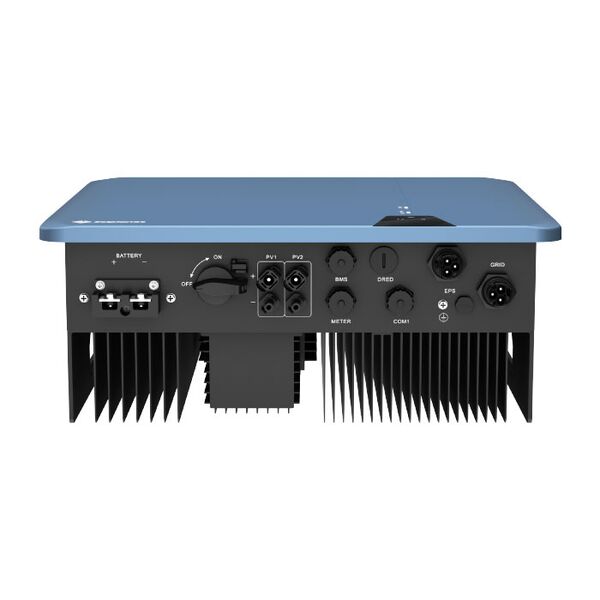

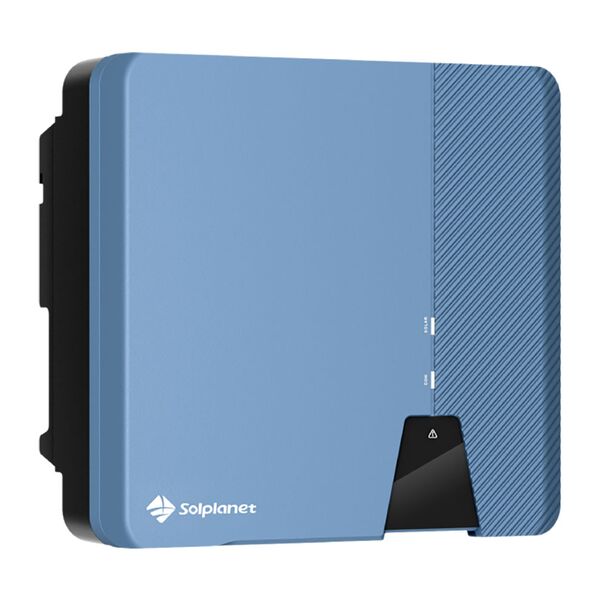

Solplanet ASW3000H-S2 - single-phase, hybrid inverter3 kW
Please sign in so that we can notify you about a reply
Description Solplanet ASW3000H-S2
The Solplanet ASW3000H-S2 inverter is a reliable partner for stable power supply. Its capacity is 3 kW. This hybrid inverter works in network and autonomous modes. It solves the problems of power supply instability.
Connecting to solar panels is simple. The inverter provides efficient energy collection. It has two independent MPP trackers. This allows you to get the maximum benefit even when one of the panels is shaded.
The Solplanet ASW3000H-S2 is also battery operated. This is important for storing excess energy. You can use it at night or during blackouts. The charging power of up to 3000 W guarantees power for electrical devices. This is especially true during outages.
The inverter has a simple control via a mobile application. It allows you to control the operation of the system. And remote monitoring - to optimize energy distribution. And the manufacturer's open API makes the inverter available for integration into third-party systems.
The inverter has a high efficiency (up to 97.6%). And the IP66 protection makes the ASW3000H-S2 waterproof
decision Able to work under any conditions. You can be sure of its safety and performance.
decision Able to work under any conditions. You can be sure of its safety and performance. ASW3000H-S2 - belongs to the category of low-power inverters. But it requires a 48 volt battery for autonomous operation. This should be taken into account when choosing an inverter. It can be used in various low-power scenarios. To ensure the energy supply of a one-room apartment, a small coffee shop or a retail outlet.
In search of a reliable, low-power inverter, pay attention to the Solplanet ASW3000H-S2 . It provides stability, efficiency and ease of use. It is an indispensable device for modern life.
Characteristics Solplanet ASW3000H-S2
AC connection
Plug-in connector
All-pole sensitive residual current monitoring unit
✓
Battery type
LiFePO4
Battery voltage range
from 40V. up to 60V.
Certificates and approvals (more available on request)
CE, IEC62109, IEC61000, EN50549, AS/NZS 4777, C10/C11, IEC61727, IEC62116, IEC61683
Climatic category (according to IEC 60721-3-4)
4K4H
Communication with BMS
✓
Compatible battery
Aiswei Ai-LB3 series
Direct current connection
Plug-in connector
Guarantee
10 years
Idling power
< 10Вт.
Installation type
Wall bracket
Max. battery for load efficiency
94.7%
Max. charging / discharging power
5000 W / 5000 W
Max. charging current / Max. discharge current
100A / 100A
Max. input current from the network
27.3A
Max. switching time
≤ 10 ms
Maximum efficiency / European efficiency
97% / 97.6%
Maximum total output power
7500 VA, 10s
MPPT efficiency
99.9%
Noise level (typical)
30dBA
Nominal battery voltage
48B.
Nominal current (at 230 V) / Max. output current
21.7A
Nominal full power / Max. input full power from the grid
6000 VA
Nominal input current from the network
26.1A
Nominal network voltage
230V alternating current
Power factor at nominal power / adjustable volume
≥0.99 / 0.8, resulting in a lag of 0.8
Connection
Communication interface
RS485/Wi-Fi/LAN/DRM
General characteristics
Number of phases
1
Power
3 kW
Producing country
China
Topology
Bare
Manufacturer
Solplanet
Physical properties
Depth
193.5 мм.
Height
455 мм.
Weight
25.1 кг.
Width
483 мм.
Technical capabilities
Cooling concept
Natural convection
DC switch
✓
Earth fault monitoring / network monitoring
✓
LED indicators (status / fault / communication)
✓
Management
Mobile application
Night monitoring
✓
Overvoltage protection
III type
Possibility of integration with third-party automation systems
✓
Terms of use
Maximum permissible value of relative humidity (without condensation)
100%
Maximum working height
3000 m.
Operating temperature range
-25°C...+60°C
Вихідні параметри по змінному струму
AC mains frequency/range
50 Гц±5 Гц / 60 Гц±5 Гц
Adjustable power factor range
≥0,99 / 0,8, що призводить до відставання на 0,8
Allowed range of alternating voltage
від 180В. до 290В.
Harmonic distortion (THD) at rated power
< 3%
Maximum output current
13.6А.
Maximum peak power
3000ВА.
Nominal AC voltage
180В. до 280В. / 230В.
Rated full power
3000ВА.
Rated output current
13.1А.
Вхідні параметри по постійному струму
Maximum input voltage
550В.
Maximum operating input current
16A.
Maximum short-circuit current
20A.
Minimum input voltage
40В.
MPP voltage range
40В. до 530В. / 380В.
MPP voltage range at full load
65 - 400V.
Number of independent MPPT inputs / lines per MPPT input
2/1
Starting voltage
50В.
Захист
DC reverse polarity protection / short circuit protection
✓
Degree of protection (according to IEC 60529)
IP65
Protection against jumps
✓
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 6
I/AC: III; DC: II
