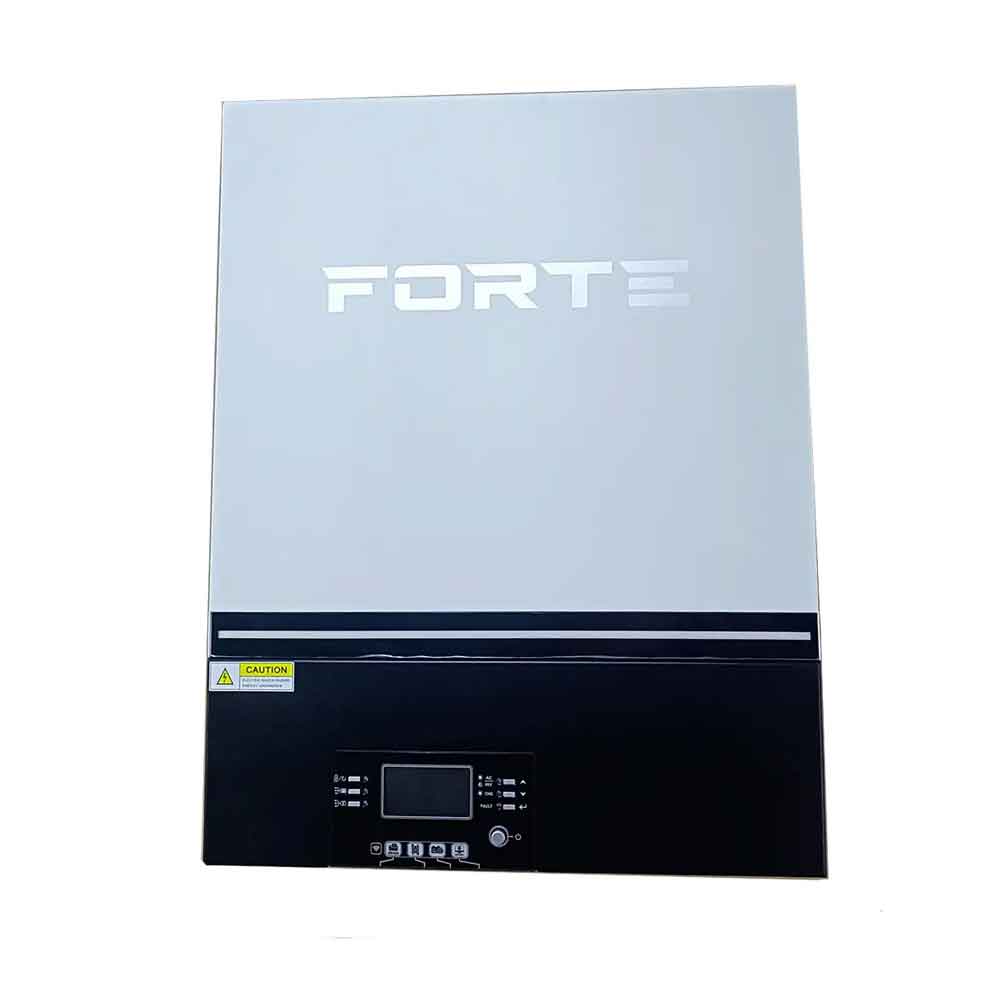

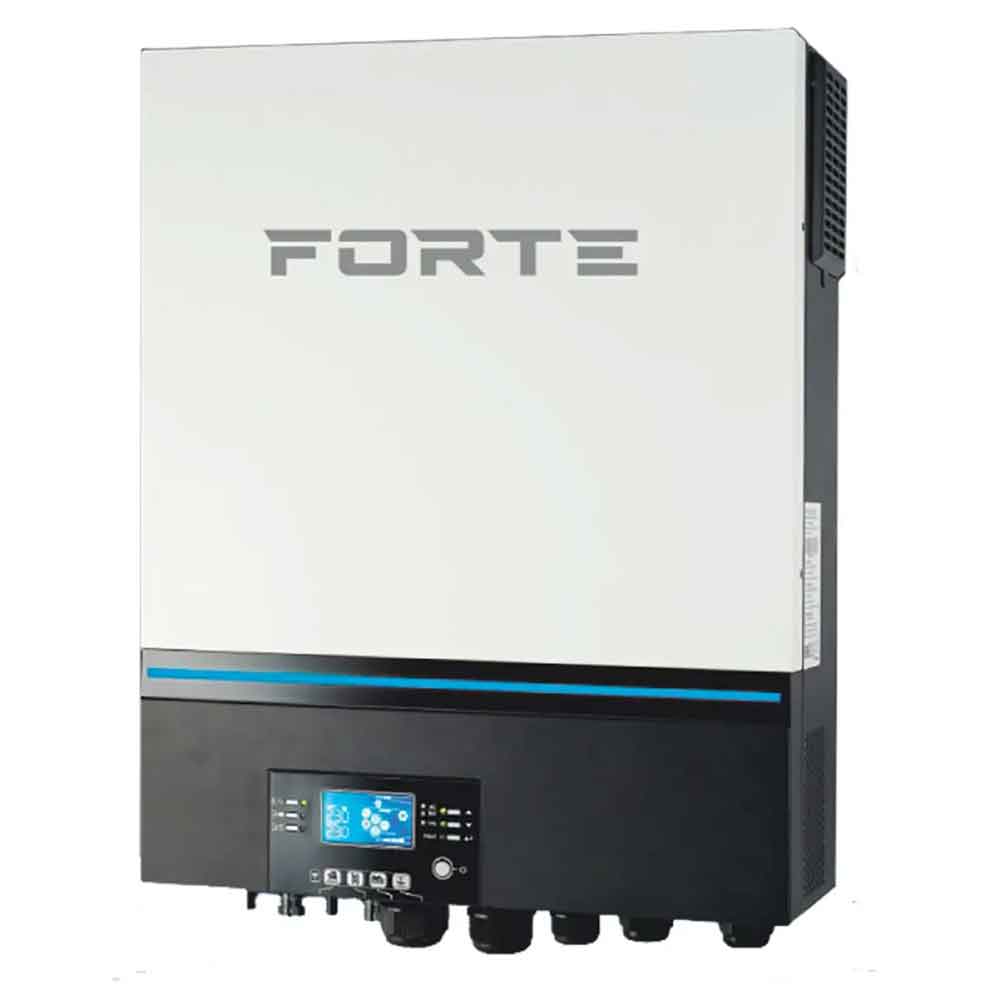

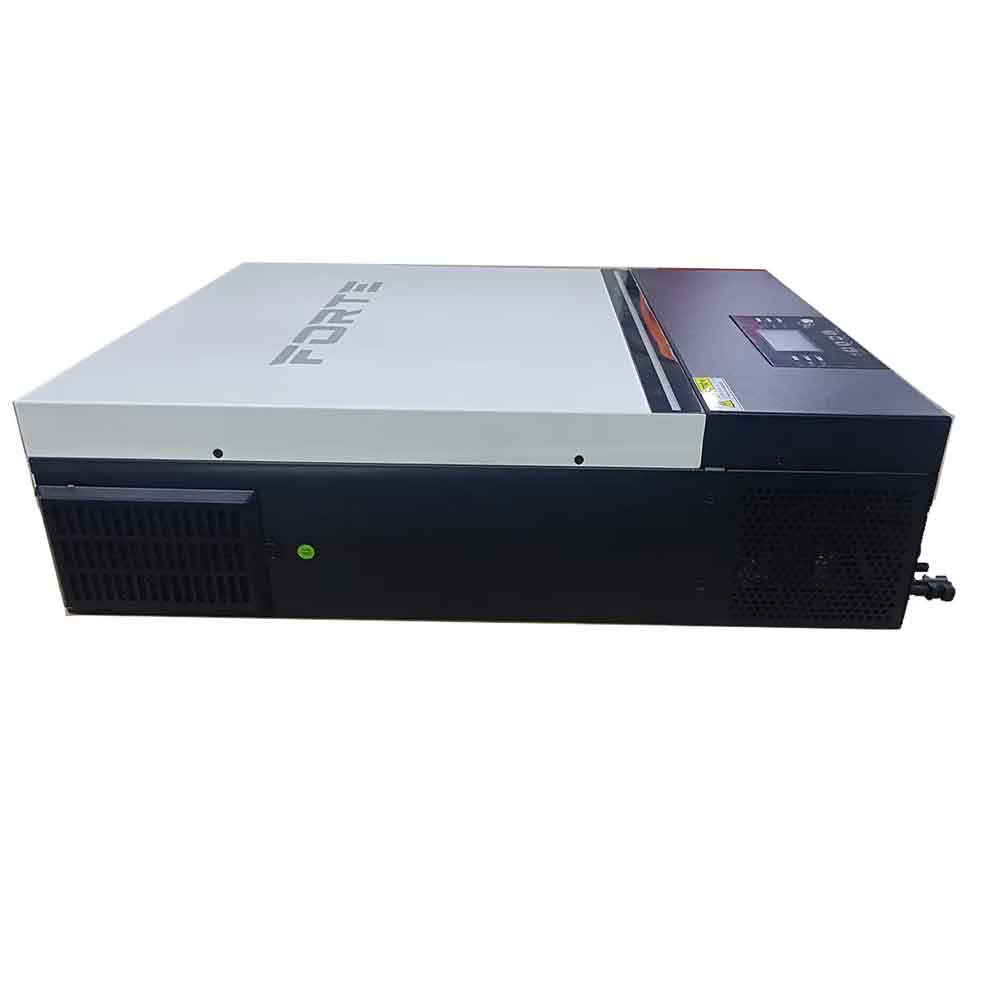

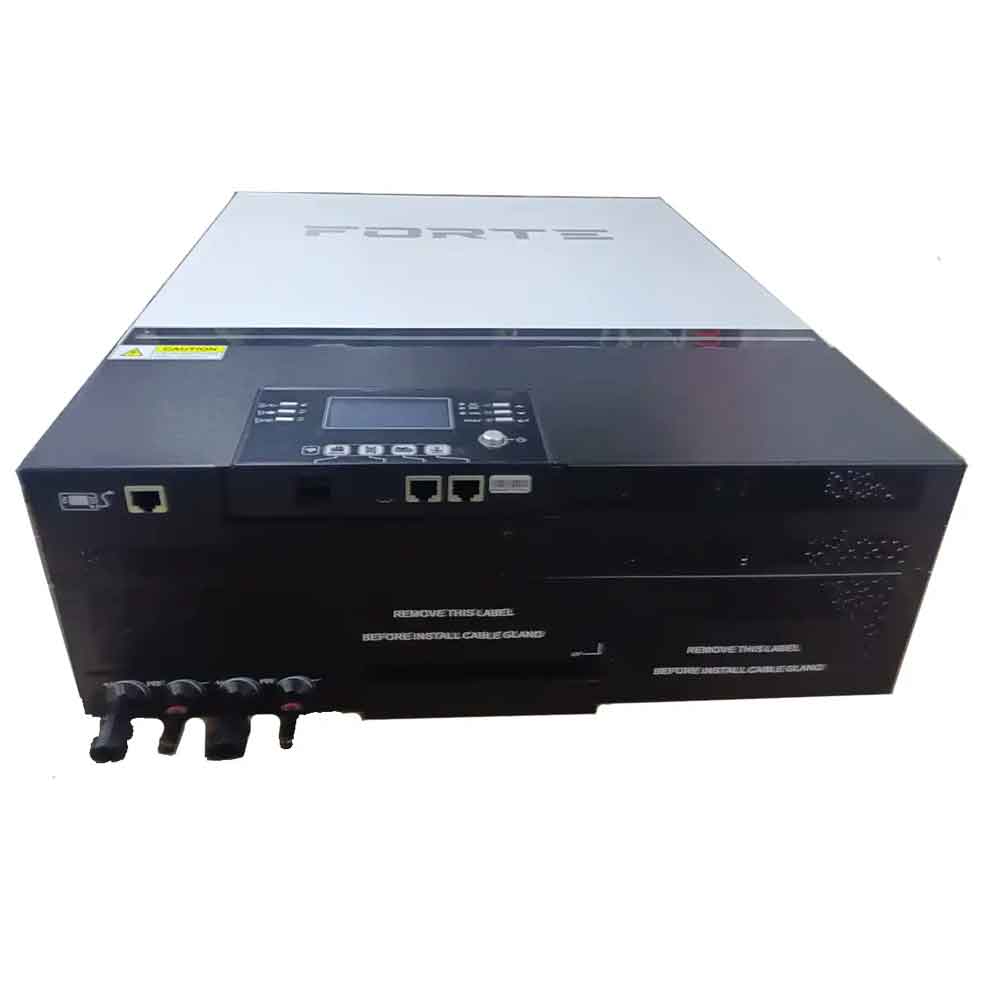

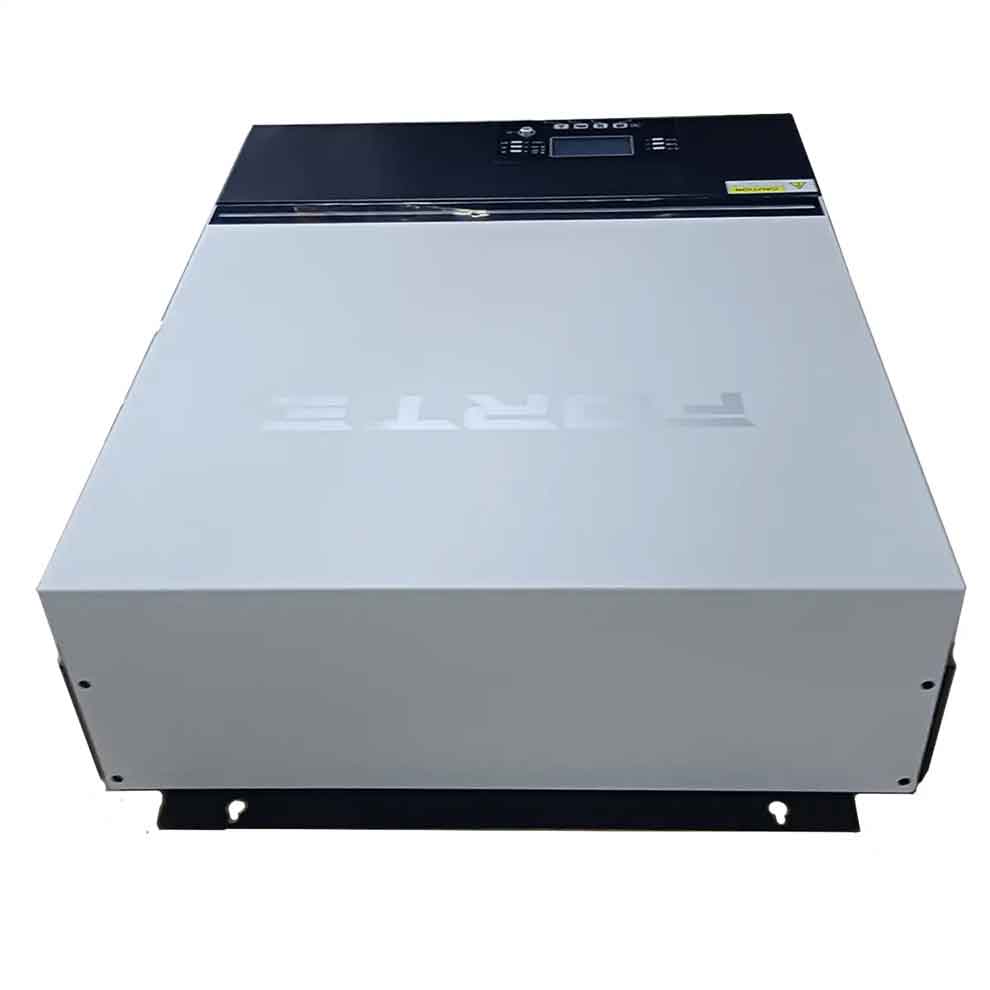

Forte Axpert MAX E-11K TWIN - single-phase hybrid inverter 11 kW

CL-0000158
55 66100
Availability: 5 item(s)
14 days
+
Add to wish list Ask a question
Our advantages
Delivery terms and cost
Payment options

Description Forte Axpert MAX E-11K TWIN

Power and capabilities

This inverter supports loads up to 11,000 W. Ensures stable operation of energy-intensive devices. Suitable for autonomous power supply of homes and businesses. Built-in MPPT controller optimizes battery charging. Works with solar panels, increasing energy independence.

Work in different modes

The inverter operates in stand-alone and network modes. Can use energy from solar panels. Supports power from the mains or generator. Automatically switches between power sources. Ensures uninterrupted power supply.

Efficient energy management

MPPT controller increases the efficiency of solar panels. Makes maximum use of available solar energy. Reduces losses during battery charging. Efficiency reaches 98%. Guarantees stable and efficient electricity generation.

Intelligent control and Wi-Fi

The built-in Wi-Fi module allows you to control the device remotely. A special application displays the system status in real time. Charging, load and energy consumption parameters are available. The user receives notifications about failures and changes in parameters. Remote control increases the convenience of operation.

Reliability and protection

The protection system includes overvoltage and short circuit protection. Temperature control is provided to avoid overheating. Built-in battery balancing function. The device automatically adapts to voltage changes. High level of safety extends the service life.

Easy to install and connect

Intuitive interface simplifies device setup. The inverter is easily integrated into existing power grids. Ports are provided for connecting batteries and solar panels. A clear display system facilitates operation diagnostics. Installation does not require complex technical solutions.

Forte Axpert MAX E-11K TWIN is a reliable solution for power supply. Suitable for autonomous and backup power systems. Supports powerful loads and effectively uses solar energy. Remote control and protection make operation convenient. The optimal choice for uninterrupted power supply.

Characteristics Forte Axpert MAX E-11K TWIN

AC connection
Plug-in connector
All-pole sensitive residual current monitoring unit
Battery type
LiFePO4
Communication with BMS
DC connection
Plug-in connector
Guarantee
12 months
Idle power
< 1W.
Installation type
Wall bracket
Max. charging current / Max. discharge current
150A
Max. input current from the network
150A
Max. switching time
≤ 20 ms
Maximum efficiency / European efficiency
93%
Nominal battery voltage
48B.
Nominal network voltage
230V alternating current
Type
Hybrid
Connection
Communication interface
Wi-Fi, RS485, CAN-BUS, RS232
General characteristics
Country of origin
People's Republic of China
Number of phases
1
Power
11 kW
Manufacturer
Forte
Physical properties
Depth
147.4 mm.
Height
553.6 mm.
Weight
18.4 kg.
Width
432.5 mm.
Technical capabilities
Cooling concept
Natural convection
DC switch
Ground fault monitoring / network monitoring
LED indicators (status/fault/communication)
Management
Control unit
Surge protection
Terms of use
Maximum permissible relative humidity (non-condensing)
100%
Maximum working height
3000 m.
Operating temperature range
0°C…+50°C
Вихідні параметри по змінному струму
AC mains frequency/range
50Hz/60Hz.
Rated AC voltage
230V.
Rated output current
80A.
Вхідні параметри по постійному струму
Maximum input voltage
300V.
Maximum operating input current
60/40A
Захист
DC reverse polarity protection/short circuit protection
Degree of protection (according to IEC 60529)
IP20
