Reolink Outdoor E1 E540 - 5 mp, rotating, Wi-Fi IP camera (black)
Please sign in so that we can notify you about a reply
Description Reolink Outdoor E1 E540
Reolink Outdoor E1 E540 is a multifunctional, rotating IP camera with optical zoom. It is a dome structure with wall mounting.
The basis of the camera is a 5-megapixel sensor with a resolution of 2560*1920P Full HD and a dynamic focal length of f=2.8-8 mm, F=1.6 mm.
It has info red and floodlight. A robotic, rotating mechanism allows you to monitor a larger area. And to save on reducing the need for the number of installed cameras. The rotation angles of the camera head are 355° horizontally and - 50° vertically. The robot is controlled using a cross-platform application, which is available for all types of mobile devices, as well as for PC and MAC . The app controls not only camera rotation, but also focus, zoom and other functions.
List of main functions Reolink Outdoor E1 E540:
- Data transfer via FTP
- RTSP streaming
- Integration with Home Assistant and other automation and voice control systems
- Integration with third-party systems using the Onvif protocol
- Automatic tracking
- Continuous recording
- Remote access and notifications
- Detecting people
- Car detection
- Detection of animals
- Motion detection
- Optical approximation of objects
- Microphone for audio monitoring
- Support for recording on a microSD card
- Support for cloud technologies
- Supported operating systems - Windows , MacOs , iOs , Android
- Works with Reolink PoE NVR
- Works with Reolink IoT devices
- Intercom mode (two-way audio communication)
The camcorder supports recording of video and audio streams on various media. In addition to recording on a microSD card , the camera supports the Reolink cloud service and other protocols - Onvif , FTP . SD card is supported up to 256Gb . The camera has the function of two-way audio communication for operation in intercom mode. And the functions of object recognition and autotracking automate the monitoring process.
Reolink Outdoor E1 E540 IP camera comes only in Wi-Fi version. And it is capable of working in two bands - Wi-Fi 2.4/5 GHz.
Reolink Outdoor E1 E540 can be mounted on pillars, walls and other vertical surfaces. Great for monitoring parking lots, areas with heavy vehicle traffic and crowds. After all, the camera is able to recognize objects and distinguish them from each other. Its functionality includes the ability to adjust the reaction according to the specified object. For example: it can react to people and ignore cars and vice versa. And accordingly, it will not notify about the latter getting into the lens and will not record the material. So it will save disk space.
The camera showed itself excellently in conditions of high mounting. Its resource is enough to detail objects from a height of 2-3 floors. And if necessary, zooming in 3 times will help to see the license plate, face and other details. Infrared illumination makes the camera effective at night at a distance of up to 30 meters.

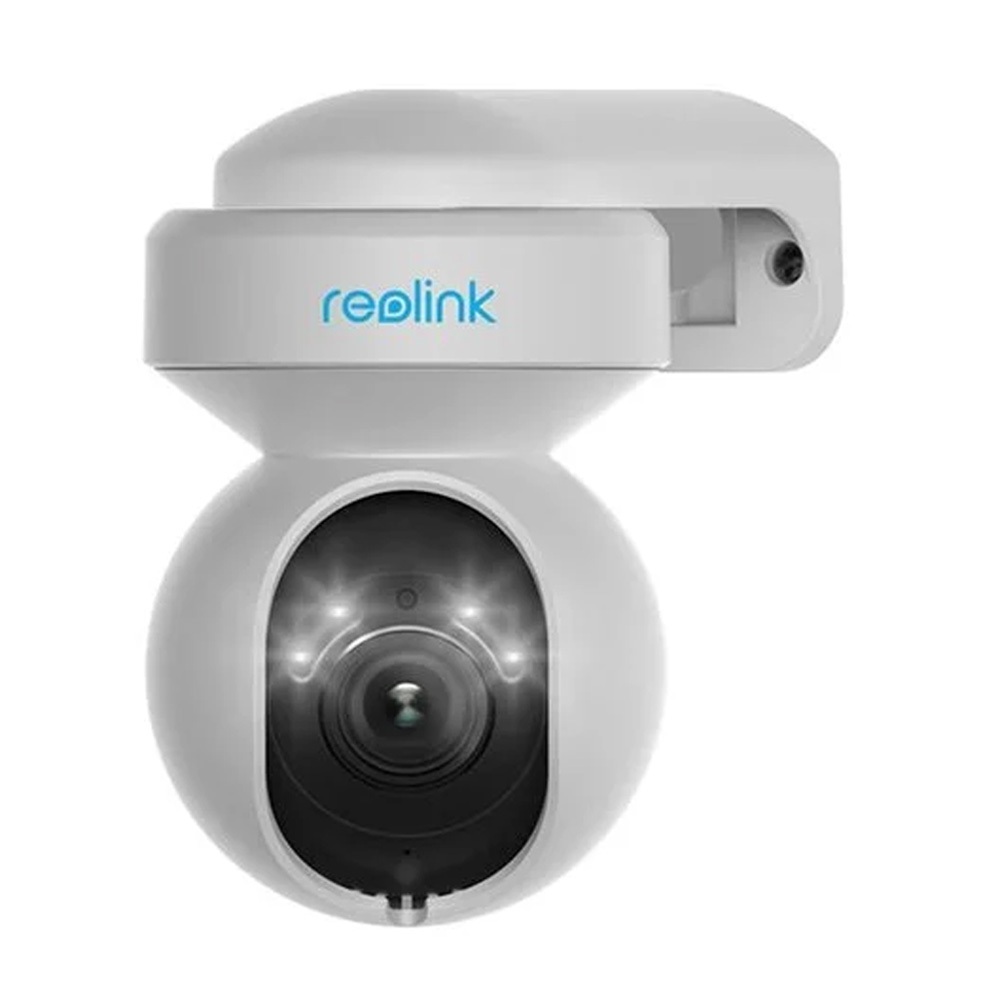

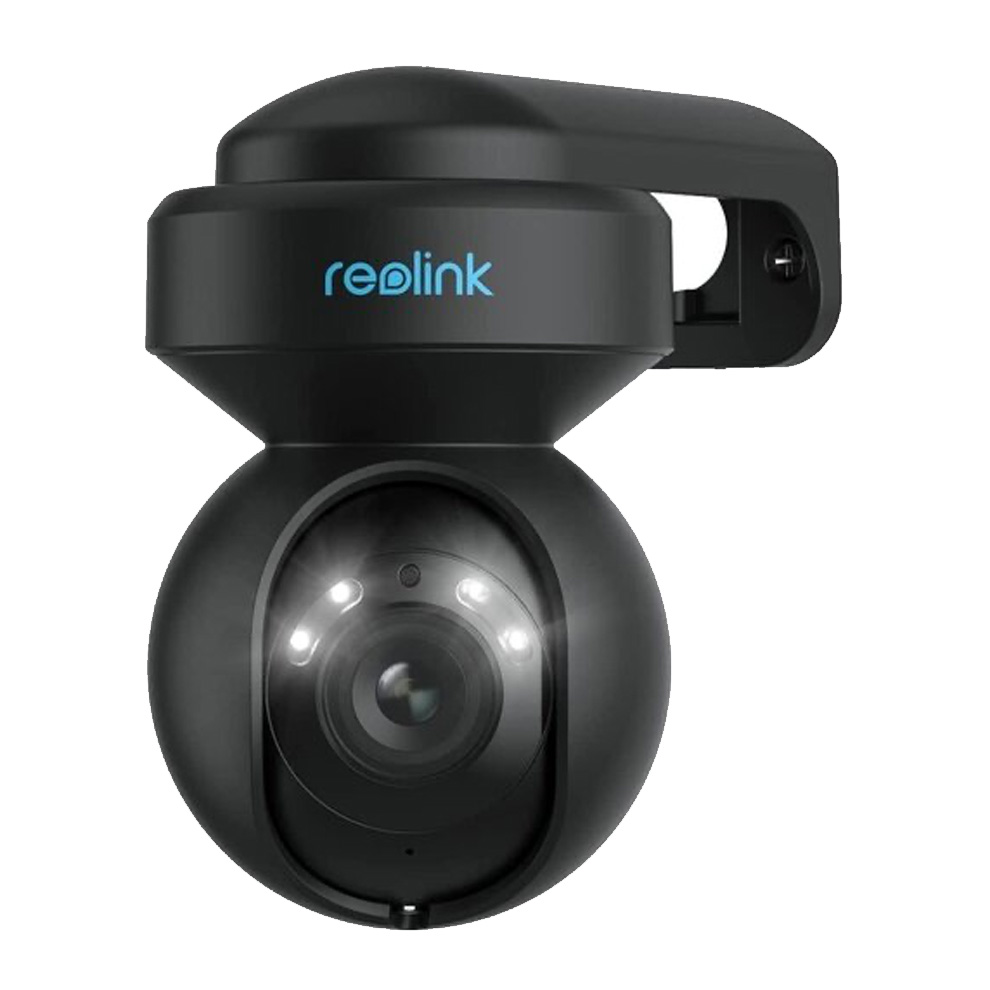

The camera is made of metal and plastic and comes in two colors - white and black.
Characteristics Reolink Outdoor E1 E540
Angle of rotation
horizontally - 355°, vertically - 50°
Compression format
H.264
Effective illumination distance
30 m.
Frame rate
Max. 25 frames per second
Number of LEDs
4
Connection
Communication channels
Wi-Fi 2.4/5 GHz
Data transfer protocols
HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
Feeding
Current consumption
2A
Power
12 W.
Supply voltage
12 V.
General characteristics
Appointment
For internal use! Ideal for a video babysitter
Guarantee
12 months
Producing country
China
Manufacturer
Reolink
Notification
Notification types
Push, E-mail
Physical properties
Color
Black
Length
85 mm.
Performance material
Aluminum
Weight
380 g
Width
85 mm.
Technical capabilities
Automatic tracking
✓
Car detection
✓
Continuous recording
✓
Detection of animals
✓
FTP
✓
Identifying people
✓
Integration with Home Assistant
✓
Intercom mode (two-way audio communication)
✓
Magnification
Hybrid (3 optical and digital)
Microphone
✓
Motion detection
✓
Remote access and notifications
✓
RTSP
✓
SD card support
✓
SD card volume
up to 256 Gb
Support for cloud technologies
✓
Supported operating systems
Windows, MacOs, iOS, Android
Works with Reolink IoT devices
✓
Works with Reolink PoE NVR
✓
Terms of use
Operating temperature range
-10°C ~ +55°C (14°F ~ 131°F)
Recommended application scenarios
Room, courtyard, shop, office, restaurant, etc.
Оптичні характеристики
Detection angle
Horizontally — 48° - 90° Vertically — 37° - 68°
Sensor
1/2.7" CMOS sensor
CODE | Color | Availability | Price | ||
---|---|---|---|---|---|
CL-0000046
|
Out of stock
|
5 74900 ₴ | |||
CL-0000046
|
Out of stock
|
5 74900 ₴ |
