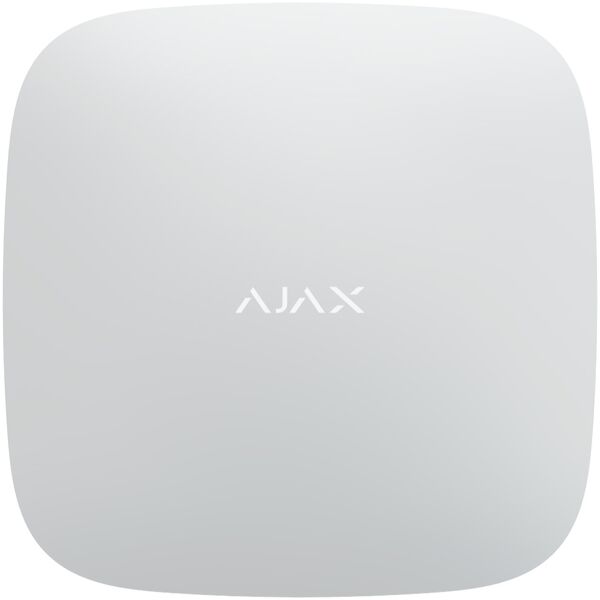

Ajax Hub 2 Plus - security system controller (white, new)
Please sign in so that we can notify you about a reply
Description Ajax Hub 2 Plus
The control center in the security system controls all devices of the security and protection system, and also provides communication and transmission of alarms and messages to the control panel of the security company or to the user's application. In other words, this is the heart of the entire security system and it must work reliably and harmoniously so that you are always sure of the high-quality operation of the installed devices and do not worry that due to the loss of communication or other reasons you will not receive an alarm message or some device will fail out of order and will not protect your property at the appropriate time.
Hub 2 Plus Jeweler is the universal central security system. The hub will always be in touch with the user thanks to 4 communication channels. After all, the center supports communication via cable, Wi-Fi and LTE high-speed network channels. The device can be connected to two different networks of Internet providers via Ethernet and Wi-Fi , as well as to two cellular networks. In the absence of one communication channel, the central office chooses another for data transmission. Automatic connection to another communication channel takes seconds.
Hub 2 Plus Jeweler is suitable for use in private, commercial facilities, facilities with complex internal organization, such as business centers, factories, multi-storey villas with outbuildings, etc.
You can connect up to 200 MotionCam sensors to this security system, automate 64 security scenarios that minimize user intervention. The hub can turn on or off the protection of all objects or a selected one, activate a smoke machine when intruders break in, cut off power to the object or turn on emergency lighting during a fire, shut off water in case of leakage, control lighting, electrical outlets, roller shutters, garage gates, change protection status
The radio network of the system covers up to 35 km2. 25 security groups, 200 users with different access permissions can be connected to the system at the same time, in order to divide the object into zones and delimit the access of employees.
The MotionCam motion sensor records the movement of strangers on the territory in 0.15 seconds, raises the alarm and sends information to the security company's remote control and the application, and after 9 seconds you will receive a series of animated pictures from the scene, which allow you to assess the situation at the object and take the right decisions on next steps.
Sensor cameras are activated only in the event of an alarm, and the images sent are protected by the innovative Wings radio communication channel for fast and reliable transmission of graphic data over long distances. Wings guarantees safe data transmission at a distance of 1,700 m from the hub, even when the signal level is unstable or communication breaks occur thanks to algorithms for checking and reloading packets.
You will definitely receive a photo confirmation of events even if you use a SIM connection for data transfer.
Coordinated communication of all devices is controlled by Jeweler radio protocol. In this case, the hub with sensors has uninterrupted two-way communication encrypted with block encryption at a distance of 2,000 m, remote control of the system and the arrival of an alarm signal in 0.15 seconds. Communication sessions are synchronized with each other, and authentication makes it impossible to forge, encrypt or steal data.
Jeweler is an energy-efficient protocol that helps sensors spend less time transmitting data when they are close to the hub, allowing sensors to run for years on the batteries that come with the devices.
The Hub 2 Plus Jeweler security system is always in touch with users and the security company so that nothing happens at the facility. It cannot be turned off when the object is disarmed, intruders will not remove the security system devices from their mounts and will not damage them thanks to the timely and instantaneous operation of the tamper. The Ajax Cloud server will notify the hub in 60 seconds about the disappearance or weak communication signal thanks to polls that monitor the operation of all security devices every 12 seconds. Even during a complete blackout , the Ajax Hub 2 Plus Jeweler will continue to work for 15 hours thanks to the spare battery.
The OS Malevich operating system is reliably protected against viruses and cyber attacks. The system is updated several times a year in a matter of seconds when it is disarmed without the involvement of an installation engineer or user.
Ajax Hub 2 Plus is easy to control from an application in a mobile phone, computer or laptop at the protected object or at a distance. The application connects to the headquarters through the Ajax Cloud server, which is located in several AWS data centers. In the application, users with administrator rights can easily manage the object's security, change the settings of the control center and connected devices, choose scenarios, and monitor events occurring at the object.
The installation of Ajax Hub 2 Plus should be entrusted to professionals — installation specialists, who will correctly position all devices in accordance with the conditions and features of the facility.
Hub 2 Plus is easily mounted thanks to the SmartBracket attachment and does not require disassembly. Communication modules, power supply and battery are already installed in the device. To install the security system, you need to connect its devices to the power grid and the Internet, insert SIM cards and scan the QR code through the application. All settings are in Ajax applications. In them, you can connect additional devices to the current security system, add video cameras, new users, test the radio signal, create groups and security scenarios, and even send a request to connect to the ATS .
Ajax Hub 2 Plus Jeweler has the function of transferring and saving data, settings, connected devices, groups, scenarios and users from old hubs to the new one. Automatic data migration greatly simplifies the process of updating hubs thanks to the import function.
Advantages of the Hub 2 Plus Jeweler:
- reliable and stable communication with the user and devices thanks to 4 communication channels from cable, Wi-Fi and LTE ;
- suitable for use at private and commercial facilities;
- transmits an alarm in 0.15 seconds after detecting the movement of unknown objects and delivers a photo confirmation in 9 seconds;
- the operation of devices is reliably protected by the Jeweler communication protocol;
- the Wings protocol guarantees safe and secure data transfer;
- 64 automated security scenarios minimize user intervention;
- 200 users with different access levels can access the system at the same time;
- the security system is resistant to sabotage, theft, hacking or data substitution;
- reliably protected by OS Malevich operating system against viruses and cyber attacks;
- easily managed from the application;
- 15 hours of operation from a reserve battery;
- easy to install and configure;
- the function of importing data from old hubs to Hub 2 Plus Jeweler is available.
Ajax Hub 2 Plus guarantees the safety of any premises and objects, from ordinary buildings to premises with complex organization. This is the most productive hub from Ajax , because it has a 4.5 times faster processor and 8 times more memory compared to Hub 2 . Thanks to advanced innovative technologies, Hub 2 Plus Jeweler is constantly developing, its technologies do not get old and always remain relevant.
You can buy Ajax Hub 2 Plus Jeweler in the ComfortLife.MARKET online store. The price of the product is indicated on the side of the photo and is valid. We deliver devices of security systems to all cities of Ukraine.
Characteristics Ajax Hub 2 Plus
Connection
Communication channels
2G/3G/4G(LTE) 2×SIM, Ethernet, Wi-Fi
Encrypted communication
All data stored and transmitted is protected by block encryption with a floating key.
Maximum effective radiated power (ERP)
20 mW
Radio data transmission protocol
Jeweller
Radio image transfer protocol
Wings
Radio signal modulation
GFSK
Radio signal range
up to 2000 m
Survey period
from 12 to 300 s
Feeding
Alternative nutrition
12 V⎓
Backup power
Built-in Li-ion battery 2 Ah
Energy consumption from the network
up to 10 W
Supply voltage
110–240 V~.
General characteristics
Guarantee
24 months
Producing country
Ukraine
Manufacturer
Ajax
Physical properties
Color
white
Depth
36 mm.
Height
163 mm.
State
new
Weight
350 g.
Width
163 mm.
Technical capabilities
Integration with third-party automation systems
Home Assistant according to the SIA protocol. (Functionality is limited)
Jeweler device support
✓
Monitoring tools
SIA, SurGard and other protocols
Number of protection groups
25
Number of scripts
64
Number of supported Ajax devices
200
Number of supported ReX repeaters
5
Number of users
200
Photo verification
✓
Support for Fibra devices
NO!
The number of supported video surveillance devices
100
Terms of use
Operating temperature range
from −10°C to +40°C
Permissible humidity
up to 75%
Protection class
IP20
Захист
Radio frequency hopping
Frequency hopping is used to prevent radio interference and radio signal interception.
