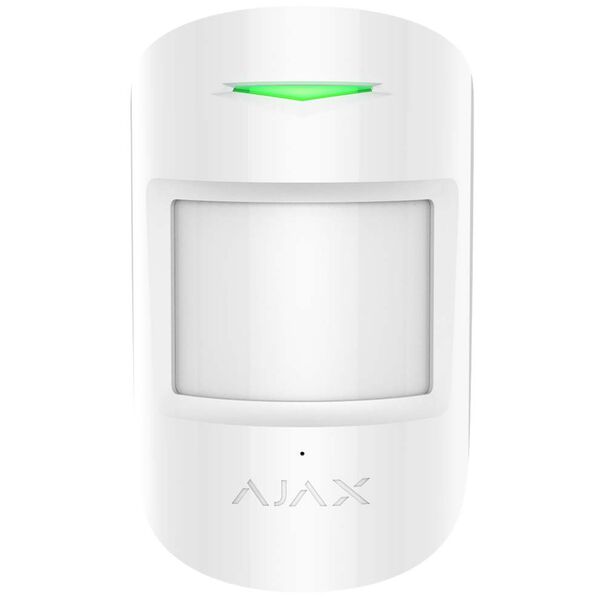

Ajax combiprotect motion and glass breakage sensor commission, white

Description Ajax combiprotect motion and glass breakage sensor commission, white

Wireless IR motion and glass break sensor with microphone CombiProtect Jeweller is a universal solution for protecting objects of any complexity. The sensor combines the functions of a device that detects motion and records glass breakage. The SmartDetect software algorithm prevents false alarms, and the intuitive interface, simple installation and configuration make it equally understandable for both professionals and ordinary users.

CombiProtect Jeweller is suitable for installation in homes, warehouses, gyms, museums, restaurants, shops, offices, production facilities, etc.

The principle of operation of the device is to detect infrared radiation from living beings with an IR sensor. If the sensor detects infrared radiation from a creature weighing more than 20 kg, it automatically sends an alarm signal to the control panel. All sensors are tested by the manufacturer Ajax before installation in the device and, together with the latest technologies, guarantee the user 100% detection of real threats.

The object captured by the sensor undergoes a thorough check for movement and weight, which helps to avoid false alarms from pets, and therefore the sensor only triggers on human movement. Also, if any objects fall into the room or a draft opens the door, the sensor will not work, because it reacts only to low-frequency and high-frequency sounds from breaking glass thanks to the built-in microphone. Multi-stage data analysis allows the sensor to react only to breaking glass, ignoring other loud sounds.

The built-in Fresnel lens distinguishes between IR radiation patterns from people, animals, and thermal obstacles. It is the lens that gives the sensor accurate information about the thermal object and the nature of its movement.

The SmartDetect software algorithm analyzes the thermal diagram read by the sensor based on the intensity of IR radiation, the size of the heat spot, the speed and nature of movement, and the duration of stay in the detection zone, instantly detects false alarms and responds to people with high accuracy.

CombiProtect Jeweller detects the movement of strangers at a distance of 12 m, and fixes glass breakage at a distance of 9 m. It has horizontal and vertical viewing angles. The glass breakage detection angle is 180. The motion and glass breakage sensors are configured for three sensitivity levels: high, medium and low. Glass breakage is verified thanks to the DualTone algorithm. The sensitive microphone records low-frequency and high-frequency sounds from glass breakage in 1.5 seconds and instantly sends an alarm signal.

Attention! The sensor does not respond to the breaking of glass covered with impact-resistant, sun-protective, decorative or any other film!

Animal immunity allows the device not to react to animals up to 50 cm tall and weighing up to 20 kg. Temperature compensation helps the device to effectively detect threats in heat and cold. The device transmits reliable information across the entire operating temperature range, as the thermal diagram remains contrasting despite cases when the ambient temperature becomes close to human body temperature.

The communication range of CombiProtect Jeweller with a hub or repeater is 1,700 m. The sensor transmits alarms, commands and events via a proprietary Jeweller communication channel protected by the protocol. The protocol transmits data via two-way communication. Signal transmission is protected from sabotage and substitution by block encryption with a floating key, and data is transmitted instantly.

The sensor's pre-installed battery guarantees its uninterrupted operation for 5 years. Its charge status can always be checked in the Ajax application. The user or security company will receive a notification about the low battery charge and the need to replace it a few months before the battery completely fails.

The sensor has automatic self-diagnosis configured and constantly transmits data to the hub about the tamper status, communication quality, power and sensor status. In the event of any malfunction, lack of power or communication, the user will receive a notification about it.

The device is easily configured remotely from a mobile application.

CombiProtect Jeweller is protected from sabotage. The tamper alarm button protects the device from hacking and damage by intruders, and attempts to tear the device from the mount will immediately become known to the user. The data transmitted by the system is protected by block encryption with a floating key, which makes it impossible to interfere with its software, replace data or steal it. Informative push notifications from the device arrive instantly, so the user will immediately know which device has been triggered and when and where it happened. Communication sessions between the device and the hub are authenticated. The hub will ignore the device's commands if at least one of the verification parameters does not pass authentication. Thanks to the constant exchange of data with the hub, the system monitors the sensor status and in the event of a device malfunction or loss of communication, it instantly notifies the user. A message about the loss of communication with the device is received in 36 seconds.

The sensor is easily mounted on a surface without disassembling the housing using the SmartBracket mounting panel and does not damage the surface to which it is attached. It should be installed at a height of 2.4 m so that the lens of the device is placed perpendicular to the likely path of penetration of intruders. Correct placement of the sensor guarantees an accurate thermal diagram and immunity to animals, which allows the device to respond to real threats and avoid false alarms.

The sensor is manufactured in a glossy housing in two colors: white and black.

Advantages of the CombiProtect Jeweller wireless motion and glass break sensor with microphone:

detects the movement of unknown persons at a distance of 12 m and reports glass breakage at a distance of 9 m;
equipped with a microphone that responds to high-frequency and low-frequency sounds from breaking glass and sends an alarm signal in 1.5 seconds;
has an IR sensor with the highest intrusion detection accuracy;
does not react to the roar of thunder and the roar of trucks;
5 years of operation from pre-installed battery;
suitable for rooms of any complexity;
works with the Ajax ocBridge wireless signal receiver.
free from false alarms thanks to the SmartDetect algorithm and animal immunity;
temperature compensation allows for effective detection of threats in heat and cold;
easily mounted using the SmartBracket mounting panel and simply adjusted;
The operation of the device can be tested during installation;
the case is protected by a tamper button;
a notification about loss of connection with the device arrives to the user in 36 seconds;
clear and easy to use even for those who are not familiar with alarm and security systems.

You can purchase a wireless IR motion and glass breakage sensor with a microphone CombiProtect Jeweller in the online store ComfortLife.MARKET. The price of the product is indicated on the side of the photo and is valid. We deliver security system devices to all cities of Ukraine.
