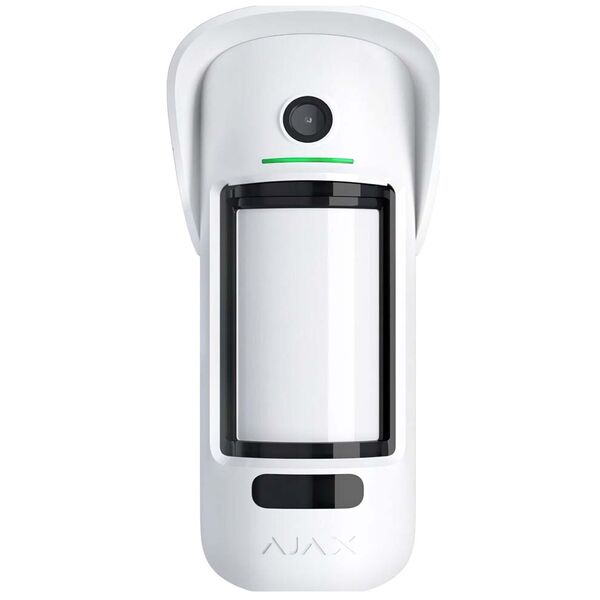

Ajax MotionCam Outdoor (PhOD) - street motion sensor with photo and video recording (commission)

Description Ajax MotionCam Outdoor (PhOD)

The MotionCam Outdoor Wireless Motion Sensor (PhOD) Jeweler is the best protection for the area where your home, office, business, garage, private parking and other property you want to protect is located. The sensor instantly triggers when intruders break in, captures their movement and takes a series of photos, which it sends to the application immediately after notification of the break-in. In addition to a series of alarm photos, the device can take photos according to a schedule, according to a scenario, and according to a request, which significantly improves its functionality.

MotionCam Outdoor (PhOD) Jeweler is designed for outdoor use, installed outdoors, and therefore has a durable glass and metal waterproof case and reliable protection against adverse weather conditions: snow, rain, dust, exposure to extreme temperatures, etc. A protective canopy from rain and snow is included with the sensor.

When the sensor detects movement in the detection zone, it activates the siren according to the set settings, activates the alarm, sends a notification to the user application and informs the security company about the intrusion.

The sensor captures movement in the zone of 3-15 meters from its location, and the wide-angle lens covers the entire protection zone and captures a complete picture of what is happening at the object. The device detects intrusion thanks to infrared sensors, detects the movement of objects that have a body temperature close to that of a person. The sensor will trigger an alarm when both infrared sensors detect movement.

Equipped with a MotionCam Outdoor (PhOD) camera, Jeweler will not only notify you of an alarm and send a series of photos to the application, but also in real time, at your request, regardless of the security mode, take a series of photos from the protected area to quickly assess the situation at the facility . This allows you to observe the territory here and now and control everything that happens there. To do this, you just need to go to the application, select the sensor and get pictures in a few seconds.

Also, in the settings, you can set a schedule according to which the sensor will send you a photo from the object or send a photo when other devices from the security system, such as a fire detector, will trigger an alarm.

The camera takes 1 to 5 pictures with a resolution of 320 × 176, and up to 3 pictures with a resolution of 640 × 352 pixels. The number of photos and their resolution is set individually.

The MotionCam Outdoor (PhOD) Jeweler street sensor is protected against false alarms, because it is designed to respond as little as possible to obstacles such as trees or bushes being shaken by the wind, animals up to 50 kg and 80 cm, children, etc. The user can check whether the threat is real or false in a few seconds.

HDR technology, reliable optics, a fast processor and advanced software algorithms guarantee that you will receive a series of good quality photos regardless of the lighting and time of day. The sensor camera takes clear and contrasting photos, because it has protection against direct sunlight, reflection of light from mirrored objects or the light of lanterns on the street. All these obstacles can deprive the picture of important details, which is unacceptable for the high-quality operation of the security device. An infrared filter helps the camera take high-quality photos in too bright light. It provides color transmission without distortion, and two bright IR LEDs provide brightness to photos taken even in complete darkness (in this case, the sensor will take black and white photos).

HDR technology allows the sensor to use less IR illumination in the dark, which significantly saves battery power.

Photos are protected from third parties at the sensor, system and application levels.

The Jeweler radio protocol provides reliable two-way radio communication with an Ajax hub or repeater, block encryption and authentication during each connection, protecting the device from tampering, tampering or data theft. It will notify you of the alarm as early as 0.15 seconds after detecting an intrusion.

And the Wings protocol helps to quickly and safely transfer data to the user's application and is responsible for their reliable storage. The first photos from the scene after the alarm will be sent to the application in 9 seconds, even in conditions of poor communication or weak signal.

The sensor cannot be broken, removed or painted over without you knowing about it. A notification about the loss of connection will be sent to the application in 36 seconds. The sensor is equipped with a tamper, which will notify you of an attempt to break it or remove it from the mounting panel as soon as someone tries to do so. Even if the system is disarmed, the sensor cannot be disabled imperceptibly, because the masking sensors built into the device react to hanging, painting or other obstacles.

LISA's two-stage digital algorithm analyzes signals from two independent IR sensors. When two sensors have detected movement and sent a signal, LISA performs correlation and spectral analyzes of the received signals and distinguishes a real threat from a false one, which makes it possible to avoid false sensor activation.

The sensor can easily be made part of your home security system. Simply scan the QR code and add it to the hub. The device is easily installed using the SmartBracket mounting panel on a flat floor or in a corner and is configured and controlled from the app.

MotionCam Outdoor (PhOD) Jeweler works in the operating temperature range from -25 to +60. Temperature compensation enables the device to withstand both heat and cold, and temperature changes do not affect the quality of its work.

The sensor recognizes people and other objects as heat spots. If the temperature of the spot is close to the human body, the device reports an alarm and sends a message to the application. Temperature compensation helps the sensor to accurately determine the movement of the spot as the movement of a person, which prevents the occurrence of false alarms.

The battery installed in the device will work for three years in a row. The sensor will notify you about the need to replace the battery a certain time before the battery fails. The quality of battery operation is checked by the sensor manufacturer before installation in the device.

MotionCam Outdoor PhOD sensors require a Hub 2, Hub 2 Plus or Hub Hybrid!

Advantages of the MotionCam Outdoor PhOD sensor:

Instantly detects the fact of penetration;
Takes a series of photos from 2 to 5, depending on the settings, and sends them to the alarm application;
Takes a photo on request, according to the scenario and when other devices of the security system are activated;
Protected against adverse weather conditions, false alarms and obstacles;
Works at temperatures from -25 to +60;
The reliable two-way protected Jeweler protocol is responsible for transmitting an alarm in 0.15 seconds, and the Wings protocol quickly and securely transmits information to the application;
Protected against hacking, painting and hanging;
It is easy to make part of an already existing security system;
Easy to control from the app, but requires competent installation by an installation engineer.
Temperature compensation helps to avoid false alarms;
A reliable battery works for 3 years in a row.

Structure of MotionCam Outdoor (PhOD)

Visor Hood
Photo camera
LED indicator
Motion sensor lens
Infrared illumination
SmartBracket mounting panel
Perforated part of the mounting panel (necessary for the tamper to work when trying to tear the sensor off the surface, do not break it)
Hole for fixing the SmartBracket mounting panel with the included screw
Sensor on/off button
Tamper button
QR code of the sensor with an ID
Motion detection range adjustment slider

The MotionCam Outdoor PhOD sensor video camera captures everything in detail. With the help of a sensor, when an alarm occurs, you will find out how many intruders have entered your territory, whether they are armed, you will have their special signs, which will help the security company to quickly go to the object that reported the alarm, and the user to react correctly to the event .

With the MotionCam Outdoor PhOD sensor, the chances of catching intruders who have entered your territory are increased, because the IR sensors help to get high-quality pictures even in complete darkness, and the special signs of criminals will be in your hands to be handed over to law enforcement agencies as evidence.

You can buy the MotionCam Outdoor (PhOD) Jeweler wireless street motion sensor in the ComfortLife.MARKET online store. The price of the product is indicated on the side of the photo and is valid. We deliver sensors to all cities of Ukraine.
