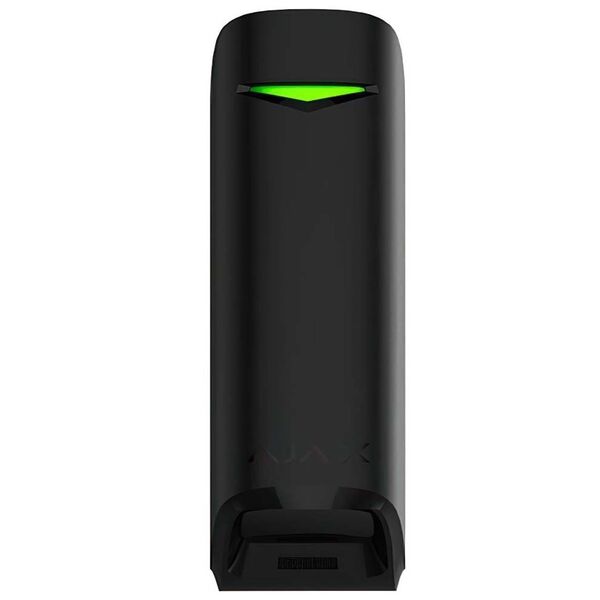

Ajax MotionProtect Curtain wireless directional motion sensor (black, new)
Please sign in so that we can notify you about a reply
Description Ajax MotionProtect Curtain wireless directional motion sensor (black, new)
The modern world requires people to constantly be on guard for their own safety or the safety of their own property. Each of us has had situations in our lives at least once that made us think about arranging a safe and secure space at home, in the office, at our own enterprise, and wherever the fruits of our labor, our property, or our possessions are stored.
To be confident in the future, in the integrity and preservation of what we have, we protect our property by installing security and alarm systems.
One of the basic steps in organizing a security system is installing motion sensors. These devices react to any movement that occurs in their area of effect and transmit a signal to the application or notify of a threat by activating the alarm.
One such device is the MotionProtect Curtain Jeweller narrow-angle indoor motion sensor.
" Curtain " technology - this is the name Ajax gave to its development, which was used in the design of MotionProtect Curtain sensors. The uniqueness of this solution lies in the ability to form a directional infrared beam. That is, the sensor forms a wave that does not spread over the entire area, but only where it is needed. The device forms a microwave "curtain" in the room, a "gate" like a laser barrier, when the integrity of which is violated, the sensor is triggered.
The sensor is designed for installation in window and door openings. It is used to prevent intrusion.
The sensor can be installed outside the window opening, in front of the glass, and it will trigger at the stage of an attempted intrusion - even before the window is opened or the glass is broken. The device is not afraid of moisture, because the manufacturer states that the permissible humidity is up to 95%, but you should not forget about the operating temperature, since it is from −10°C to +40°C, as with most Ajax devices.
The sensor works well in arches, where it is not possible to install contact sensors.
Motion sensor for bedroom
The ideal sensor for protecting a room in night mode. Since a conventional motion sensor will react to any movement, which will cause constant, false alarms and thus make it impossible for the security system to work in night mode. MotionProtect Curtain - does not monitor the entire room, but only a specific area, so its activation occurs only after motion is detected in it.
Therefore, by installing this sensor in the bedroom, you can not worry about false alarms due to the fact that you moved in bed. The sensor will give an alarm signal only when movement is detected in a certain area. For example - outside the window, if it is mounted outside.
So, using the MotionProtect Curtain sensor, you can organize perimeter protection of a certain area.
Motion detection with two IR sensors
Horizontal and vertical viewing angles of the sensor's IR sensors
SmartDetect algorithm for filtering false alarms
Correlation signal processing for additional protection against false alarms
Temperature compensation
Management and configuration via Ajax applications
Up to 3 years of battery life
Up to 1700 meters radio communication range with the hub
The sensor is designed for installation in window and door openings. It is used to prevent intrusion.
The sensor can be installed outside the window opening, in front of the glass, and it will trigger at the stage of an attempted intrusion - even before the window is opened or the glass is broken. The device is not afraid of moisture, because the manufacturer states that the permissible humidity is up to 95%, but you should not forget about the operating temperature, since it is from −10°C to +40°C, as with most Ajax devices.
With the MotionProtect Curtain Jeweller motion sensor, you can reliably protect your property from intrusion. It is best suited for indoor use, as it has a limited field of view: 6° horizontally and 90° vertically.
The MotionProtect Curtain Jeweller sensor responds to movement within a radius of 15 m, and the motion detection speed is from 0.3 to 2 m/s.
A replaceable battery after the first installation will ensure full operation of the device for three years.
Like most Ajax products, MotionProtect Curtain transmits a signal up to 1,700 meters from the hub. The transmitted data is protected by the two-way Jeweller protocol. In the event of interference or an attempt to jam, the sensor switches to a free radio frequency and notifies its owner and the security company.
The device covers the entire perimeter of the building where it is installed and, in the event of intruders entering, raises an alarm and calls a security company patrol.
The MotionProtect Curtain Jeweller indoor motion sensor with a narrow viewing angle is perfect for protecting houses, apartments, garages, warehouses, museums, shops, banks, etc.
In unheated rooms, it can withstand temperatures down to -10 °C, so it can easily handle the protection of garages, warehouses, car parks, etc. In such rooms, the temperature rarely drops below the permissible values.
The sensor reacts only to humans and does not react to animals or birds due to the setting that allows it not to detect the movements of objects with low weight. If you install the sensor in an apartment or house, you will not be bothered by a false alarm caused by the movements of a dog or cat, and the correlation signal processing will protect against false alarms.
Information about the situation in the room where the sensor is installed is processed thanks to a unique optical system with two infrared sensors and a multifaceted mirror. Two PIR sensors allow you to record both slow human movement and fast movement, so the signal about the intrusion will reach your application in an instant, or rather in 0.15 seconds.
Installing the sensor is easy and simple - to do this, you need to scan the QR code, add the sensor to the room and start installation. The SmartBracket mount allows you to install the sensor without much effort, even for those who have never done such things. The absence of a wired connection greatly facilitates this work, which allows you to save on consumables. Manufacturers recommend installing the sensor at a height of 2.4 m. The device is configured and tested via a mobile application.
The sensor has three sensitivity levels.
Advantages of the MotionProtect Curtain Jeweller narrow-angle indoor motion sensor:
- - reliable security protection of your property;
- - suitable for houses, apartments, offices, banks, garages, salons, museums, shops, warehouses, etc.;
- - detects movement at a distance of 15 m;
- - does not react to animals;
- - withstands temperatures from -10 °C to +40 °C;
- - instantly reacts to the appearance of a person;
- - easy and simple to install;
- - configurable via the application;
- - has an affordable price.
In the event of a malfunction of the MotionProtect Curtain Jeweller narrow-angle indoor motion sensor, the manufacturer guarantees its replacement and repair within 24 months from the date of purchase.
The security opto-electronic radio channel detector — MotionProtect Curtain Jeweller will be your best choice if you need to protect your property from intrusion.
MotionProtect Curtain Jeweller narrow-angle indoor motion sensor is a reliable protection for your property and a guarantee of your safety!
You can purchase a narrow-angle motion sensor for indoor use MotionProtect Curtain Jeweller in the online store ComfortLife.MARKET . The price of the product is indicated on the side of the photo and is valid. We deliver sensors to all cities of Ukraine.
Characteristics Ajax MotionProtect Curtain wireless directional motion sensor (black, new)
Alarm delivery time
0.15 s
Horizontal viewing angle
6°
Motion detection range
Adjustable (from 6 to 15 meters)
Motion detection speed
From 0.3 to 2 m/s
Sensitivity
Adjustable, 3 levels
Vertical viewing angle
90°
Connection
Communication range
1700 m.
Radio protocol
Jeweler
Radio signal strength
20 mW
Feeding
Battery life
Up to 3 years
Supply voltage
3B.
General characteristics
Country of origin
Ukraine
Guarantee
24 months
Manufacturer
Ajax
Physical properties
Color
black
Depth
34 mm.
Height
134 mm.
State
new
Weight
118 g.
Width
44 mm.
Technical capabilities
Compatibility
with Ajax hubs and repeaters
Temperature sensor
✓
Terms of use
Operating temperature range
From -10°С to +40°С
Permissible humidity
Up to 95%
Place of application
Indoor
Protection class
IP54
Recommended installation height
2.4 m
Захист
Anti-sabotage
Protection against substitution. Jamming notification. Tamper for opening and tearing off
