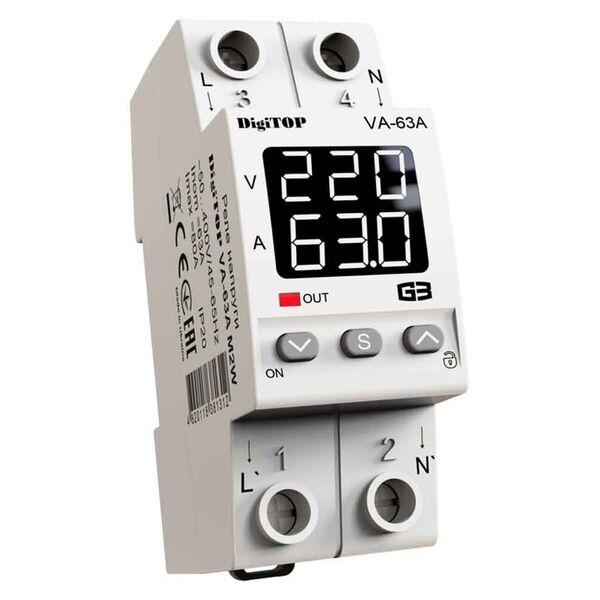

DigiTOP VA-63A M2W - voltage relay with current control 63A
Please sign in so that we can notify you about a reply
Description DigiTOP VA-63A M2W
If you have a lot of equipment at home or at your company, especially powerful ones – a boiler, pump, air conditioner or refrigerator – then you are probably worried about its safety. Voltage surges, network overload or short circuit can cause expensive devices to fail. The DigiTOP VA-63A M2W voltage relay with current control will help you avoid these problems, protecting your electrical equipment from unexpected surges.
This device acts as a “guardian” for your network. It constantly monitors voltage and current levels, and if they go beyond safe limits, it automatically shuts off the power. This means that your equipment will not be damaged even in the event of a sudden power surge.
The relay supports loads up to 63A , which allows it to be used not only in apartments and houses, but also in workshops, garages or small industries. You can independently set the necessary parameters so that the relay works exactly as needed in your network. In addition, the digital display is convenient for monitoring current voltage and current.
Installing DigiTOP VA-63A M2W is very simple - it is mounted in a standard electrical panel and does not require complex configuration. Reliable components and a well-thought-out design guarantee a long service life. This is an excellent solution for those who want to protect their equipment from voltage surges and sleep peacefully, knowing that everything is under control.
Characteristics DigiTOP VA-63A M2W
Current tripping time
Ivm > 2Ivm – 0.02 sec, Imax < Ivm < 2Vvm – 5 sec, Ivm < Ivm < Imax – 600 sec
Lower cut-off limit
120 - 200V
Lower limit shutdown time
1(120-170V), 0.02(120V and less) sec
Maximum permissible load current
80A
Measured voltage
50 - 400B
Power-on delay time (step 5 sec)
5 - 600 sec
Rated load current
63A
Thermal protection
70°C
Transit of zero
✓
Unstable frequency operation mode
✓
Upper limit tripping time
0.02 sec
Upper shutdown limit
210 - 270V
General characteristics
Country of manufacture
Ukraine
Guarantee
60 months
Manufacturer
DigiTOP
Physical properties
Case size, modules 17.5 mm each
2
Degree of protection
IP20
Depth
67 mm.
Form factor
DIN
Height
90 mm.
Indicator color
white
Width
35 mm.
