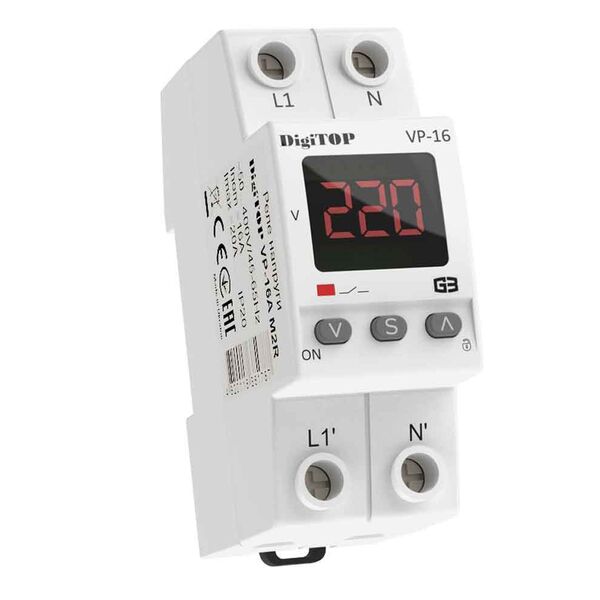

Description DigiTOP VP-16A M2R
The DigiTOP VP-16A M2R voltage relay is a simple and reliable way to protect your equipment from voltage surges. It automatically turns off the power if the voltage exceeds safe limits, preventing damage to household appliances, TVs, computers, refrigerators and other electronics.
What is important is that the VP-16A M2R operates in a wide voltage range of 120-270 V and can withstand loads up to 16 A. The digital display shows the current voltage in real time, as well as records emergency situations, so you will always know what is happening in the network.
Installation is very convenient - the relay is mounted on a DIN rail , which allows it to be easily integrated into the electrical panel of an apartment, house, office or production facility.
Another important advantage is the restart delay function . It is needed to protect equipment that does not like sudden restarts, for example, refrigerators or air conditioners. You can set the pause time before restarting.
The case is made of durable plastic , resistant to heat and shock, and the quality of the device is confirmed by positive user reviews.
If you want to get rid of worries about power surges once and for all and protect your equipment - DigiTOP VP-16A M2R will become your reliable assistant!
Characteristics DigiTOP VP-16A M2R
Lower cut-off limit
120 - 200V
Lower limit shutdown time
1(120-170V), 0.02(120V and less) sec
Maximum permissible load current
20A
Measured voltage
50 - 400B
Power-on delay time (step 5 sec)
5 - 600 sec
Rated load current
16A
Thermal protection
70°C
Transit of zero
✓
Unstable frequency operation mode
✓
Upper limit tripping time
0.02 sec
Upper shutdown limit
210 - 270V
General characteristics
Country of manufacture
Ukraine
Guarantee
60 months
Manufacturer
DigiTOP
Physical properties
Case size, modules 17.5 mm each
2
Degree of protection
IP20
Depth
67 mm.
Form factor
DIN
Height
90 mm.
Indicator color
red
Width
35 mm.
